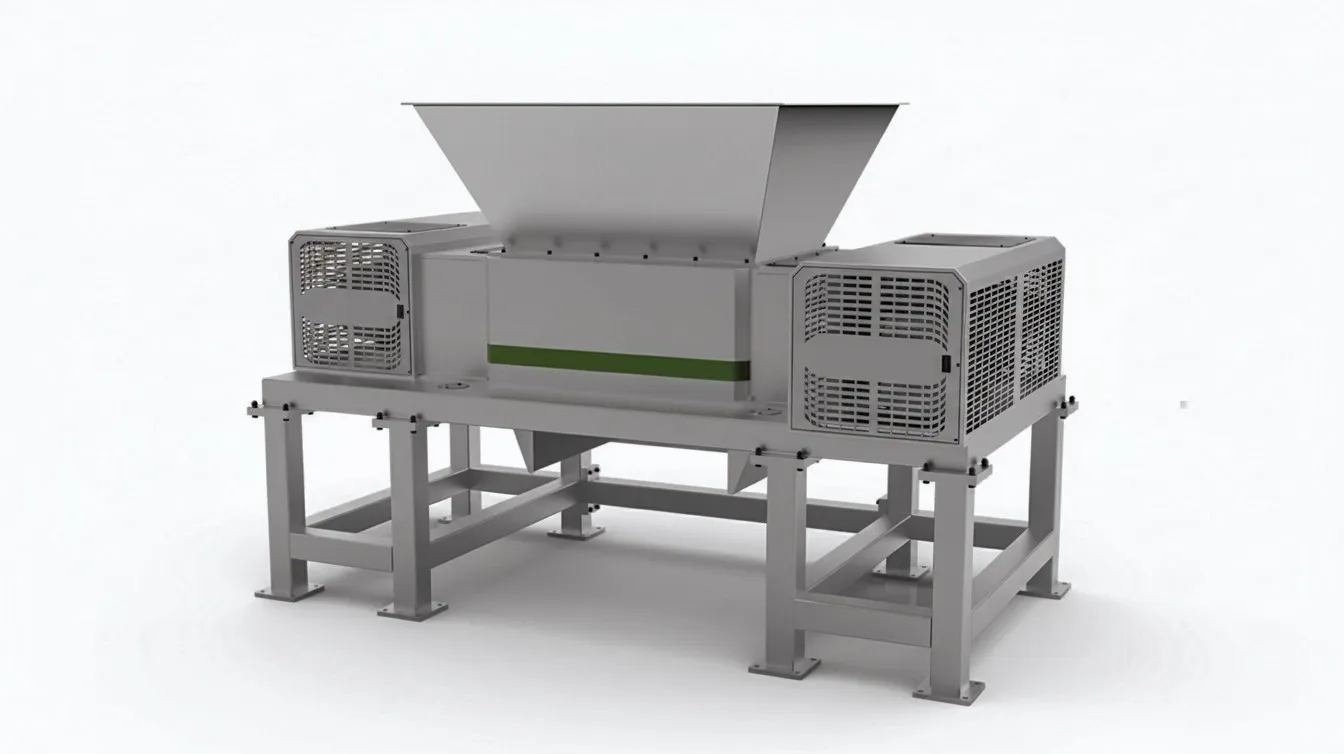

Tire Double Shaft Shredder (RTM-DSH Series)
Primary size reduction for whole tires, delivering consistent chips for downstream separation and crumb rubber processing. Built for stability, serviceability, and predictable output in real-world recycling lines.
*Depends on model, tire type/size, and required output.
Why Choose the RTM-DSH Series?
The RTM-DSH series is designed for tire recycling lines that need stable throughput, consistent chip quality, and low-risk operation under varying feed conditions.
It efficiently processes passenger car and truck tires into coarse chips that feed Stage 2 equipment (screening, steel separation, and granulation). Knife configuration, speed/torque strategy, and optional screening determine the final output size and consistency.
Operation Video (Placeholder)
Add a short running video (infeed, shredding, discharge, and an anti-jam reversal cycle). This is one of the highest-impact assets for buyer confidence.
What Buyers Want to See
- Infeed condition (whole tires, mixed sizes).
- Chip uniformity at discharge.
- Load behavior and anti-jam reversal.
- Sound/vibration level at steady state.
Materials, Output, and Line Integration
Typical Materials
- Passenger car tires, SUV tires, light truck tires.
- Truck tires (TBR) depending on model and configuration.
Typical Output
- Coarse chips for screening and steel separation.
- Common chip size target: 4-6 inches (adjustable by configuration).
Typical Process (Example)
- Primary shredding (RTM-DSH) -> chip screening -> steel separation -> secondary grinding.
- Optional conveyors, hoppers, and dust control for safer handling.
Core Features & Benefits
Powerful High-Torque Design
Engineered for the rigorous demands of tire shredding. Its robust torque output effortlessly processes even the largest and toughest tires without jamming.
Intelligent Impact Protection
Our advanced electrical control system with torque-limiting function instantly reacts to severe impacts, protecting shafts and knives to ensure smooth, uninterrupted operation.

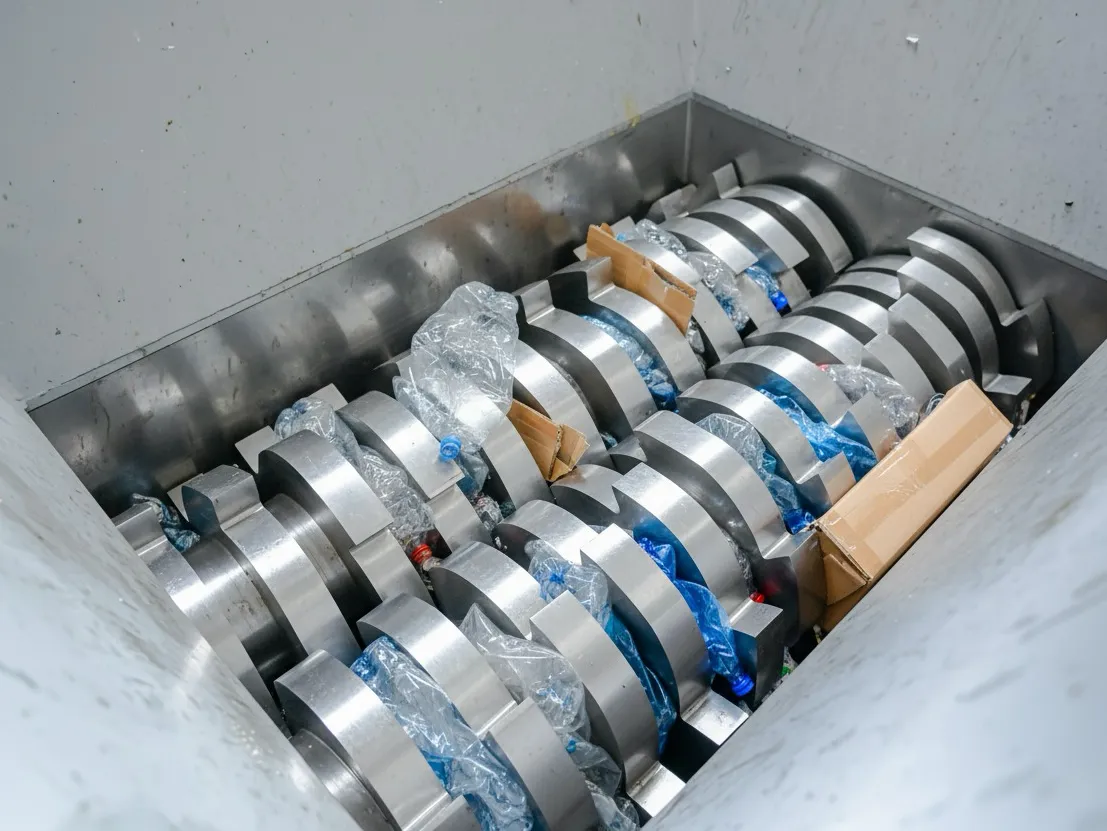

Revolutionary Hybrid Knife Technology
Offers two industry-leading knife system options, allowing you to flexibly configure the machine for optimal performance and cost-efficiency based on your specific needs.
Automation & Remote Monitoring
An integrated suite of cameras and sensors enables autonomous self-regulation. Operators can view live feeds remotely, maximizing efficiency and workforce flexibility.
Superior Chip Quality
Precision knife tolerances produce exceptionally clean-cut chips with minimal exposed wire, increasing the market value of your end product and simplifying downstream separation.
Turnkey Solutions
We provide a complete package, pre-wired and factory-tested for rapid on-site installation within 2-3 days, saving you significant time and setup costs.
Advanced Control & Automation
Precision at Your Fingertips
PLC-based control with configurable protection logic helps stabilize operation, reduce shock loads, and improve uptime. Controls and component brands can be configured to your site standards.
- Real-time performance monitoring and data logging.
- Automated anti-jamming and shaft reversal sequences.

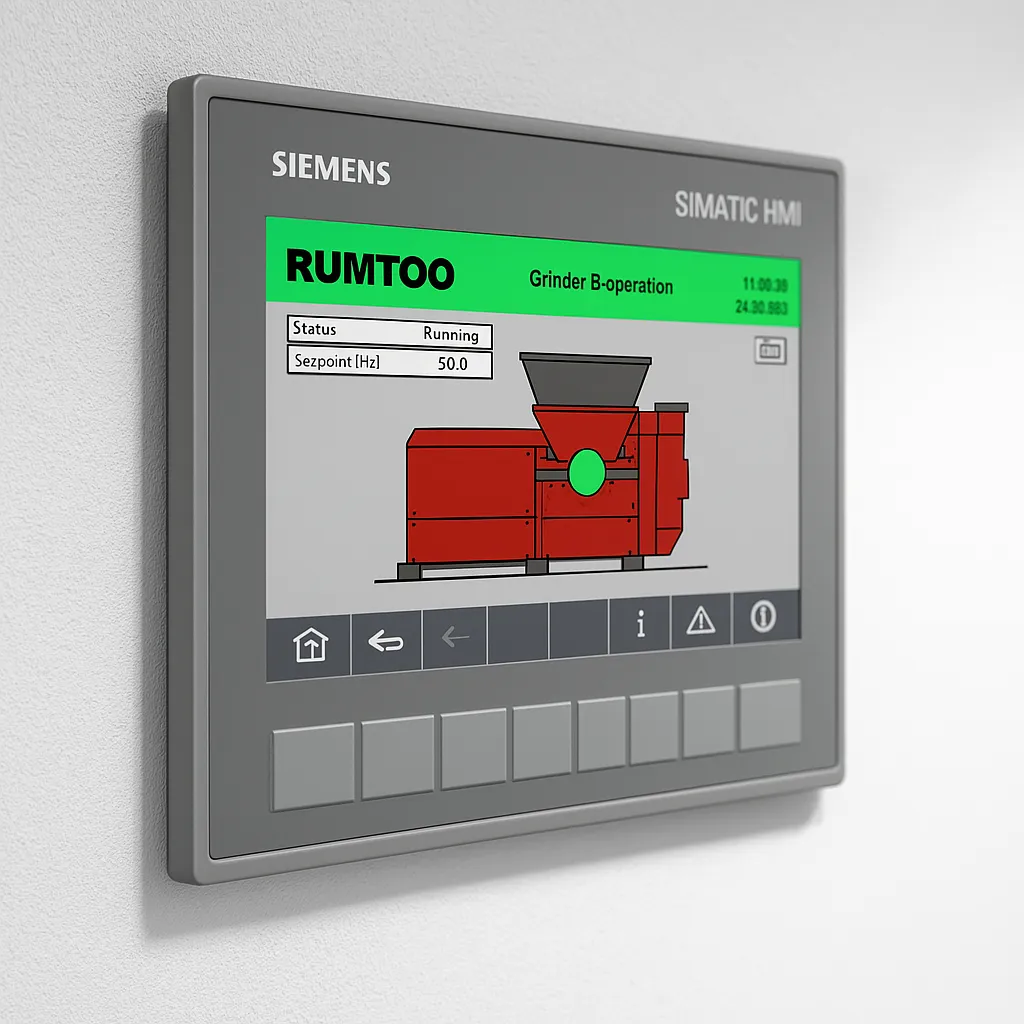

- Intuitive touchscreen interface (HMI) for easy operation.
- Remote access capabilities for diagnostics and support.
The Hybrid Knife System
Unmatched Versatility and Durability
The “Hybrid” designation reflects the exceptional versatility of our cutting technology. You have the freedom to choose the system that best fits your application and budget.
Options & Accessories
Configure the RTM-DSH around your target output, feed system, and site utilities. Below is a typical options list (placeholder).
Screening & Classification
Disc screen / trommel / sizing options to stabilize chip size for downstream separation.
Conveying & Infeed
Hoppers, belt conveyors, discharge conveyors, and metered feeding to reduce surges.
Steel Separation
Magnetic separation options to reduce wire carryover before the next stage.
Installation & Commissioning
Layout guidance, commissioning checklists, and operating parameter recommendations.
Safety & Dust Control
Guarding, interlocks, extraction points, and site-specific safety integration.
Spare Parts Package
Recommended spares for fast startup and predictable maintenance planning.
Photo Gallery (Placeholders)
Replace these placeholders with real photos: full machine, shred chamber, knives, control cabinet, discharge, and an on-site installation.
Technical Specifications: RTM-DSH Series
| Model | Shaft Dia. (mm) | Knives (pcs) | Max. Capacity (kg/h) | Power (KW) | Chamber (LxW mm) | Weight (kg) | Dimensions (LxWxH mm) |
|---|---|---|---|---|---|---|---|
| RTM-600-DSH | 320×45 | 12 | 800 | 18.5×2 | 600×780 | 3800 | 2960x880x2300 |
| RTM-800-DSH | 320×45 | 16 | 1000 | 22×2 | 800×780 | 4800 | 3160x900x2400 |
| RTM-1000-DSH | 400×50 | 20 | 2000 | 45×2 | 1000×880 | 7000 | 3360x980x2500 |
| RTM-1200-DSH | 400×50 | 24 | 3000 | 55×2 | 1200×880 | 8500 | 3760x1000x2550 |
| RTM-1600-DSH | 500×65 | 24 | 5000 | 75×2 | 1600×960 | 12000 | 4160x1080x2600 |
| RTM-2000-DSH | 600×77 | 28 | 8000 | 90×2 | 2000×1102 | 20000 | 4600x1220x2800 |
*Note: Capacity varies based on material type, density, and output size. Specifications are subject to change without notice.
Frequently Asked Questions
What is the price of the RTM-DSH shredder?
Pricing for our RTM-DSH series varies based on the model, knife configuration, and any additional components like conveyors or screening systems. To provide you with an accurate price, we encourage you to contact us for a custom quote tailored to your specific operational needs.
How long does installation take?
Our systems are designed for rapid deployment. Since each unit is fully assembled, pre-wired, and tested at our factory, on-site installation is incredibly efficient. Typically, your shredder can be fully operational within 2 to 3 days of its arrival.
What kind of maintenance is required?
Routine maintenance includes regular lubrication, inspection of hydraulic and electrical systems, and monitoring knife wear. A key advantage of our patented knife system is its durability and reusability. The knives can be reground multiple times, significantly reducing long-term maintenance costs and downtime compared to competitors.
Can I change the output chip size?
Yes, absolutely. Our shredders are designed for versatility. The final chip size is determined by interchangeable classification screens. You can easily swap screen cartridges to produce different output sizes, from rough shreds to precise 1-2 inch chips, depending on your market requirements.
Can this shredder handle materials other than tires?
While the RTM-DSH series is optimized for tires, its robust, high-torque design makes it capable of processing other challenging materials like rubber, plastics, and non-ferrous metals. Please consult with our specialists to confirm its suitability for your specific non-tire application.
What kind of warranty and after-sales support do you offer?
Rumtoo Machine stands behind its products with a comprehensive manufacturer’s warranty. We also offer extensive after-sales support, including spare parts supply, technical assistance, and remote diagnostics to ensure your equipment maintains peak performance for years to come.
Request a Quote
To recommend the right model and configuration, please share your tire type, target output size, and throughput requirement.
